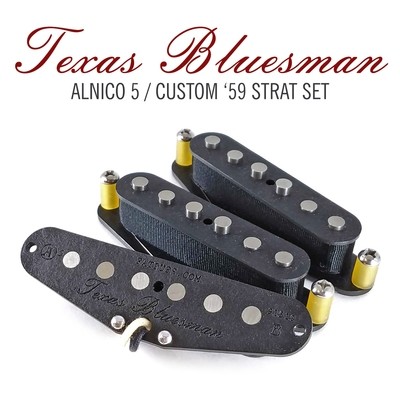

As they were made in '59, the "Texas Bluesman" pickups are handcrafted with larger diameter alnico 5 pole pieces, and the coils are scatter wound with heavy build magnet wire. The larger diameter rod magnets give these pickups lots of spank and a little more bite. The middle pickup is reversed for humbucking in the 2 and 4 positions, and the bridge pickup is overwound for more bass and increased output...
Magnet Stagger - Choose between vintage staggered pole pieces or flat poles (non-staggered)
RWRP - This option will give you noise canceling in the 2 and 4 positions when buying a set of 3. The standard wind is counterclockwise windings with South up magnets. RWRP has clockwise windings with North up magnets. Any position pickup can be ordered individually with RWRP or standard.
Aged Poles - With this option the alnico rod magnets are patinaed which gives the pickups an aged look. When you choose aged poles the pickups also will come with aged mounting hardware (screws).

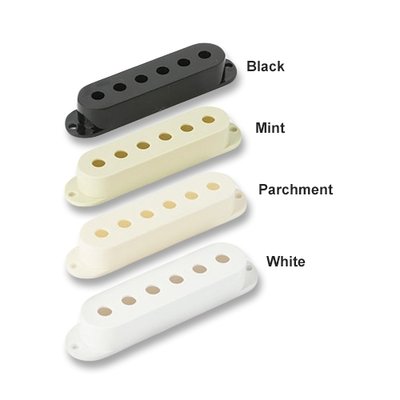

Covers - Choose between Parchment, Black or White covers. They have 2 1/16" (52.2 mm) spaced pole spread and are interchangeable with many other aftermarket covers.
BRIDGE: 6.9k, CCW, North Up
MIDDLE: 6.0K, CW, South Up
NECK: 5.7k, CCW, North UpDCR TOLERANCE: +/- 5% at 68°F (20°C) MAGNET GRADE: A5 POLE SPACING: 2 1/16" (52.2 mm) LEAD WIRES: Gavitt Push Back Cloth POTTING: Paraffin & Beeswax HARDWARE: Screws & Tube Springs
Tone tested, built to last, and made from the finest materials available. Every guitar pickup is individually handcrafted and scatter wound with the utmost attention to detail. Completely committed to quality, incredible guitar tone, and most importantly your satisfaction!
