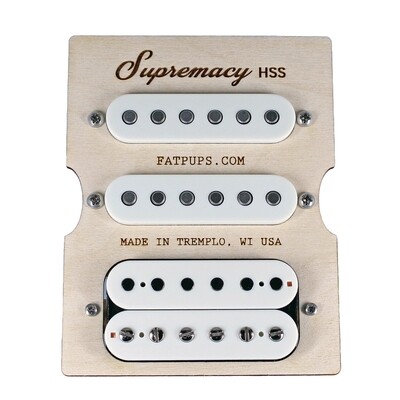

Supremacy HSS Strat® Pickups

Product Details

[tab name="DESCRIPTION"]

HSS guitars can only be useful if the tone of humbuckers and single coils pair up nicely. Not only that, but the magnet polarities and winding directions must be configured or there will be phase problems. These are challenges that can take some planning or even trial and error to figure out.

The Supremacy HSS calibrated pickups are designed to work perfectly with each other and eliminate all the fuss of having to match the pickups. Calibrated to sound excellent together, suitable for both right or left-handed guitars, and the pickups are compatible with many popular HSS wiring kits/harnesses.

All 3 pickups are scatter wound and equipped with alnico 5 sand cast magnets. The single coils have beveled flat poles and provide a warm tone with good output so that they balance well with the humbucker, but tonally they still retain their classic Strat character with plenty of spank/attack when you dig in, and round bell tones when played softer.

The humbucker is built like an uncovered PAF with a pure nickel silver baseplate and vintage correct slugs and screws- it’s punchy with plenty of character, rich harmonics and overtones. The Supremacy HSS pickups are excellent choice for rock and blues, but could serve anyone who loves a Strat but needs something beefier and noiseless for their bridge pickup.

[tab name="SPECS"]

HUMBUCKER: 8.0k, Slugs North, Screws South

MIDDLE: 6.3k, CCW, South

NECK: 6.1k, CW, North

DCR TOLERANCE: +/- 5% at 68°F (20°C)

MAGNET GRADE: ALNICO 5

HB POLE SPACING: 53 mm

SC POLE SPACING: 2 1/16" (52.2 mm)

HB LEAD WIRE: 4-conductor

SC LEAD WIRE: Gavitt Push Back

POTTING: Paraffin & Beeswax

HARDWARE: 6 Screws & 6 Tubes/Springs

[tab name="LISTEN"] Are you a social media influencer in the guitar world? If you are and you would like to make a demo video of this product please message chris@fatpups.com.

Handcrafted in the USA

Tone tested, built to last, and made from the finest materials available. Every guitar pickup is individually handcrafted and scatter wound with the utmost attention to detail. Completely committed to quality, incredible guitar tone, and most importantly your satisfaction!
